LH-Series

The largest machine line in our inventory. With features that will keep your portion packaging line running smoothly, its a machine that you can count on.

Machine Capabilities

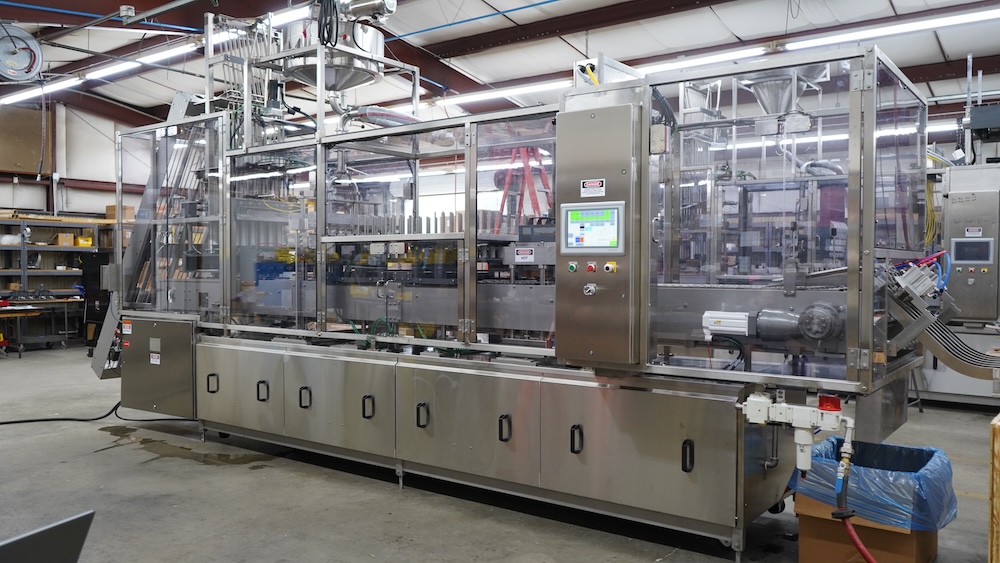

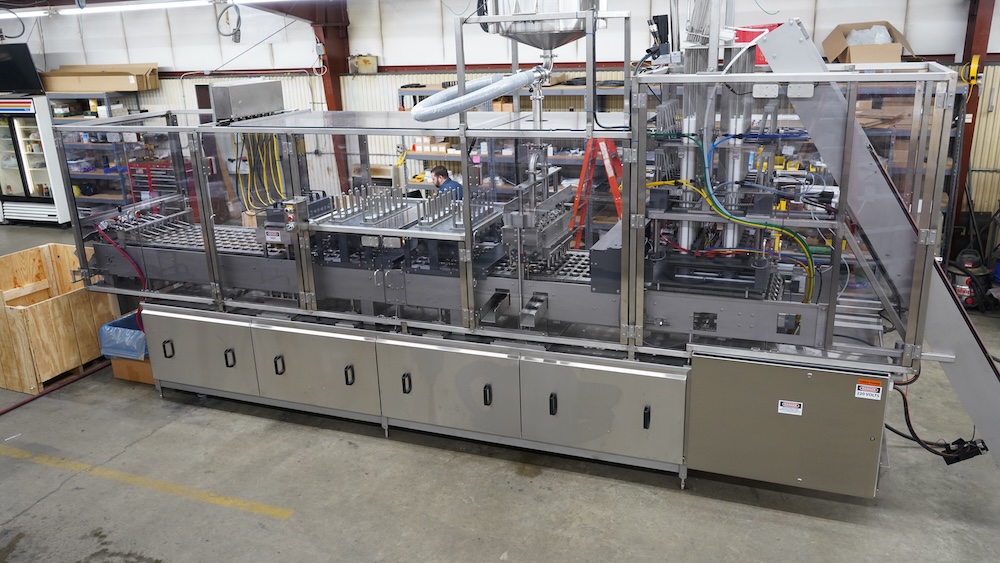

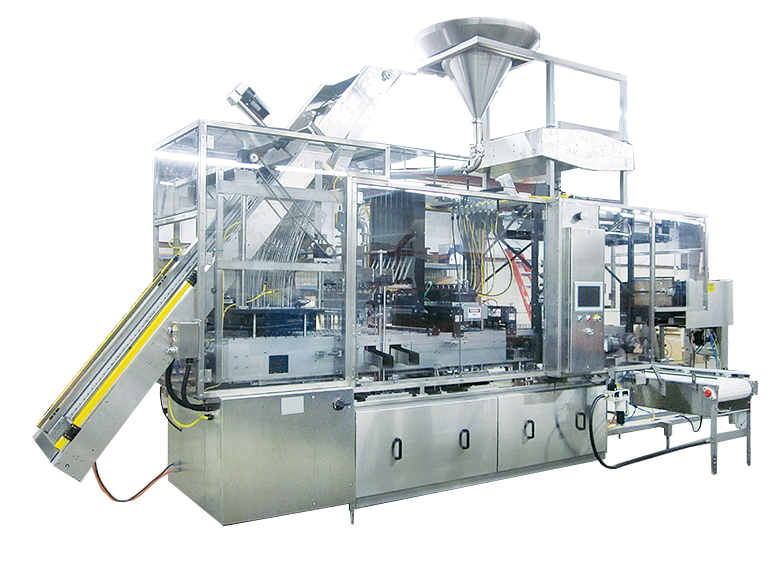

The LH-Series is a larger Round Cup machine that can fill cups from 37mm - 75mm. Even for its larger size the LH-Series is still able to be operated by one user.

Construction

Stainless Steel & Aluminum Construction for long life and corosion resistance.

Easy User Interface

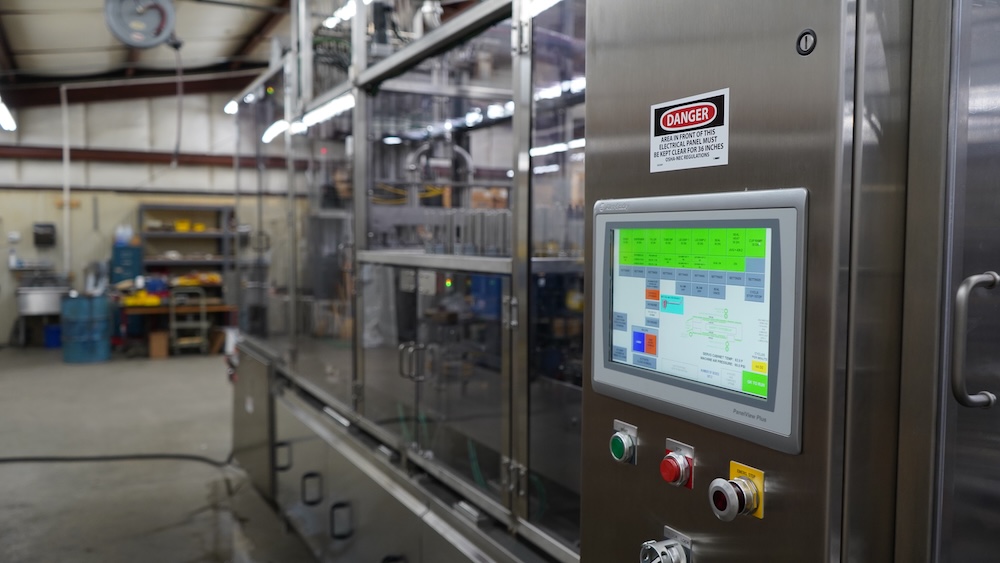

Color Touchscreen Operator Interface.

One User

Only one machine operator needed.

Multi-Flavor

Positive displacement piston filler capable of multiple flavors.

Date Packages

Date coder integration.

Automated Packing

Automatic case packers.

Tamper Free

Stainless steel perimeter guarding with electrical interlocks on doors.

Cup Fill Data

10J 4″ Index for the ‘A’ Cup

10J 4.5″ Index for the ‘C’ Cup

8J 5 1/2″ Index for the ‘B’ Cup

12J 5 1/2″ Index for the ‘B’ Cup

12J 5″ Index for the ‘E’ Cup

Cup Width

1.45 in

1.75 in

2 in

2 in

2 in

Cup Length

2 in

2.25 in

2.75 in

2.75 in

2.5 in

Cups Per Index

10

10

8

12

12

Film Width

7.28 in

8.78 in

8.03 in

12.03 in

12.03 in

Production Rate

Up to 650 cups/minute

Up to 650 cups/minute

Up to 480 cups/minute

Up to 720 cups/minute

Up to 720 cups/minute

Fill Volume

Maximum .75 fluid oz

Maximum 1.5 fluid oz

Maximum 2 fluid oz

Maximum 2 fluid oz

Maximum 2 fluid oz

Fill Temperature

Min: 34°F   Max: 175°F

Min: 34°F   Max: 175°F

Min: 34°F   Max: 175°F

Min: 34°F   Max: 175°F

Min: 34°F   Max: 175°F

Applications

Jellies

Jellies, Sauces

Jellies, Sauces, Syrups

Jellies, Sauces, Syrups

Jellies, Sauces, Syrups

Contact for quote

Contact us to fulfill your packaging needs today

We look forward to learning more about your needs and helping you choose the best path forward for all industrial packing needs.
